Stone Mining Steel Rubber Disc Idler Impact Roller Conveyor

Product Categories
HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD
Contact Now

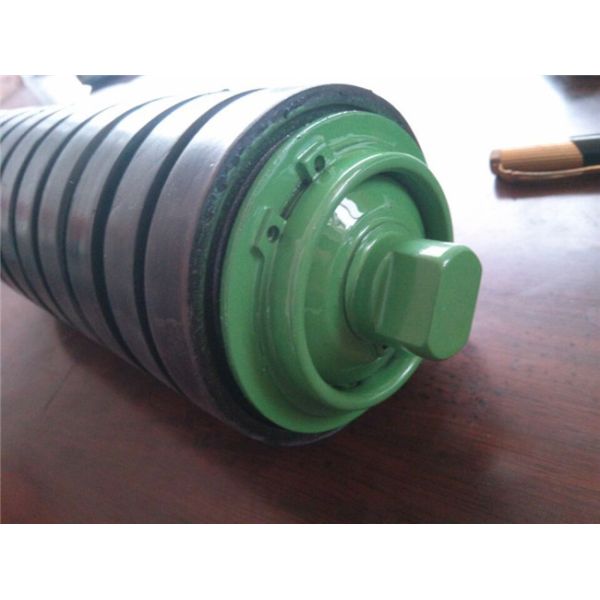

Stone Mining Steel Rubber Disc Idler Impact Roller Conveyor

  • 1
  • 2
  • 3

Brand Name : QINYI

Model Number : Heavy Duty Steel Roller

Certification : CE / ISO

Place of Origin : cangzhou

MOQ : 10 Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000 Piece/Pieces per Week

Delivery Time : 10~15 days

Packaging Details : Steel-strcuture pallet or wooden box

Application : Chemical Industry, Grain Transportation, Mining Transport, Power Plant

Structure : Ordinary Roller, Variable Groove Angle Roller

Product name : Black Rubber Conveyor Belt Carrying Impact Roller

Standards : Cema, as, DIN, JIS, GB

Specification : 89*350*20*380MM

Type : Double Sealed Bearing

Usage : Transportation,conveyor,such as pallet

Pipe Diameter : 89mm

Contact Now

Steel Rubber Disc Idler Rollers Impact Conveyor Roller For Stone Mining

Main Features

To accommodate the demands of different working environment, we developed different body-sealed structures for customers to choose the most suitable type for their own particular applications.
1) Solid design, most suitable for heavy loading.
2) The bearing housing and steel tube are assembled with precision concentric automatic welding machine
3) Cutting of the pipe and bearing is processed by CNC automatic equipment
4) The shaft end is precision barreled and firmly connected with the bearing
5) Fabrication of the roller is tested by an auto device to ensure concentricity
6) Roller and supporting components.materials are conformed to DIN/AFNOR/FEM/ASTMCEMA standards.
7) The roller is lubricated and maintenance free.
8) Life span is up to 30,000 work hours or more, depending on correct usage.
9) Sealing structure: inner-seal, 3 slot labyrinth seal, V shape rubber ring and centrifugal self-cleaning body to ensure water and dust proof.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments.

Friction up-aligning roller​ design

Standard Diameter Length Scope(mm) Bearings Type(Min-Max) Shell Wall Thickness
mm Inch
63.5 2 1/2 150-3500 6204 2.0mm-3.75mm
76 3 150-3500 6204 205 2.0mm-4.0mm
89 3 1/3 150-3500 6204 205 2.0mm-4.0mm
102 4 150-3500 6204 205 305 2.5mm-4.0mm
108 4 1/4 150-3500 6204 205 305 306 2.5mm-4.0mm
114 4 1/2 150-3500 6205 206 305 306 2.5mm-4.5mm
127 5 150-3500 6204 205 305 306 2.5mm-4.5mm
133 5 1/4 150-3500 6205 206 207 305 306 2.5mm-4.5mm
140 5 1/2 150-3500 6205 206 207 305 306 3.5mm-4.5mm
152 6 150-3500 6205 206 207 305 306 307 308 3.0mm-4.5mm
159 6 1/4 150-3500 6205 206 207 305 306 307 308 3.0mm-4.5mm
165 6 1/2 150-3500 6207 305 306 307 308 3.5mm-6.0mm
177.8 7 150-3500 6207 306 307308 309 3.5mm-6.0mm
190.7 7 1/2 150-3500 6207 306 307308 309 4.0mm-6.0mm
194 7 5/8 150-3500 6207 307 308 309 310 4.0mm-6.0mm
219 8 5/8 150-3500 6308 309 310 4.0mm-6.0mm

Stone Mining Steel Rubber Disc Idler Impact Roller Conveyor

Stone Mining Steel Rubber Disc Idler Impact Roller Conveyor
